Scratch & Dent YETI XD™ Tie Rod Assembly - 2018+ Jeep Wrangler JL/JT WRANGLER or GLADIATOR RUBICON/MAX TOW/HIGH-ALTITUDE/4XE/MOJAVE/392
Scratch & Dent YETI XD™ JL/JT (Rubicon/Max tow/High-Altitude/4XE) 1½-ton Tie Rod
|By Steer Smarts||
Tie Rod Part #
Rubicon/Max Tow/High-Altitude/4XE/Mojave/392: S-78088001
These products have small blemishes in the form of pain chips or scratches and are being sold as-is. They are in perfect working condition aside from some aesthetic issues.

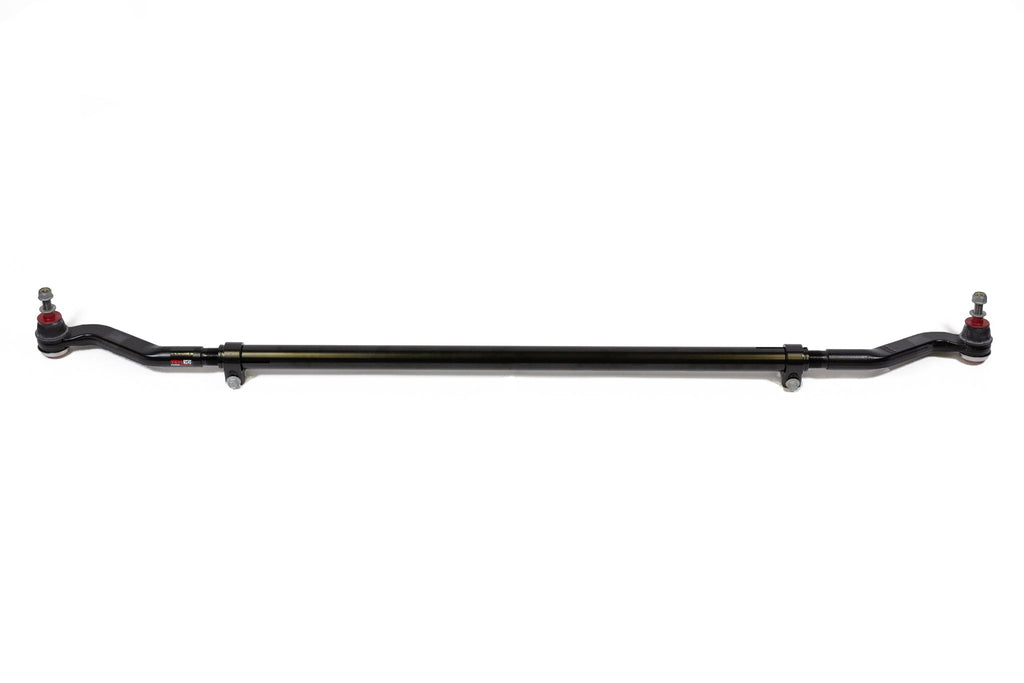

STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JL Wrangler. We applied our 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler.
The YETI XD Tie Rod is a direct bolt-on for any JL Wrangler or Gladiator Rubicon/Max Tow/High-Altitude/4XE. The YETI XD installs in just minutes and there is no need to modify or alter your Jeep.
FeaturesYETI XD TIE ROD ASSEMBLY:
- Easy bolt-on installation.
- Engineered for proper clearance to other chassis components to eliminate interferences.
- MADE IN THE USA
- 30mm 1 1/2 Ton ball joints designed specifically for the JL.
- Cold-headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.
- Induction heat-treated ball studs provide ultimate fatigue strength and superior off-road durability.
- Steel on steel bearings provide exceptional ball joint wear resistance and robustness.
- High-quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.
- Fully greaseable.
- Powder coat over E-coat for a long-lasting appearance under harsh conditions.
- External threads are e-coated for durability and long-term serviceability.
- Forged from medium carbon high hardenability steel and heat-treated for greater buckling, impact, and fatigue strength.
- Forged from medium carbon high hardenability steel and heat-treated for even greater buckling, impact, and fatigue strength.
- Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.
- Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.
- Tie Rod adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.
- Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.
- Designed with right-hand and left-hand threads for quick and easy adjustment once installed on the vehicle.
- Internal threads and tubes are also e-coated for long-term serviceability.
- Clamps need to be torqued to 80-85 ft-lbs and should be oriented so that they do not interfere with anything else (generally facing forward or down). Clamp torque needs to be checked at 500 miles, and then again at 2000 miles. After that, every oil change the torque specs should be checked as well as after any hard wheeling/off-roading.
* Tie Rod fits all left-hand drive JL Wrangler models 2018+ including Rubicon and requires a 1 5/8" diameter damper bracket that is not included. Check out the YETI XD Damper Bracket.
Note: A minimum of 17” wheels is recommended.
(approx) 1 Hour
Moderate Mechanical Skill Required
Basic Hand Tools
